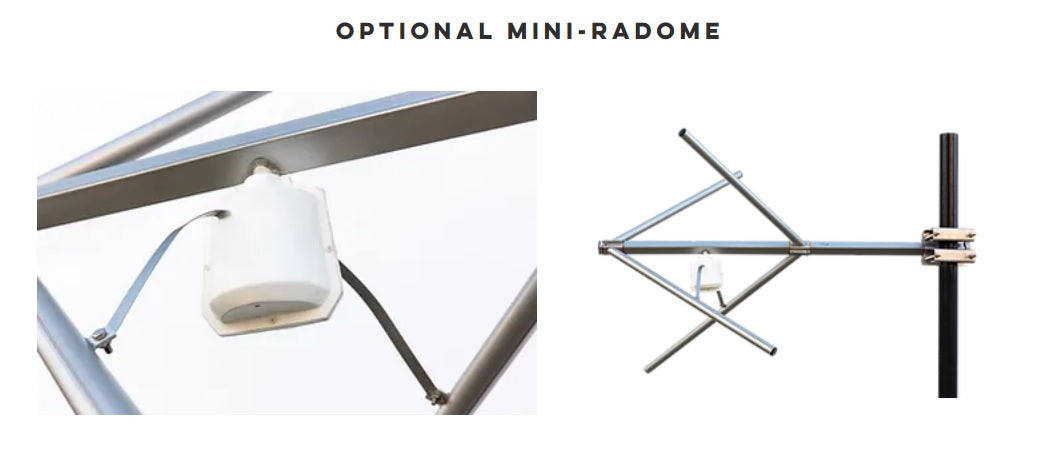

BKG77/RAD

Regular price $1,940.00
/

Only 0 items in stock!

Nicom BKG77 Medium Power Broadband FM Circular Polarization Antenna

This antenna, constructed completely of stainless steel, offers circular polarization for better coverage especially in urban areas. In order to facilitate and decrease shipping costs, this model is simple to break down and reassemble when ready to be installed. It is insulated with Teflon, and with the appropriate connector has a maximum input of 2 kw.

Technical Specifications:

  • Antenna type: dipole
  • polarization: Circular
  • Front-to-back ratio: 3 dB
  • Frequency range: 87.5 - 108 MHz
  • Lightening protection: all parts grounded
  • Bandwidth: 20 MHz
  • Max wind velocity: 120 mph (190 km/h)
  • Impedance: 50 ohms
  • Wind load: 53 Lbs (24 kg)
  • Connectors: N type (1 kw) -7/16 (2 kw)-7/8 EIA (3kw)
  • Wind surface: 1.1 ft2 (0.10 m2)
  • Power rating: 2500 Watts max
  • Materials (external): stainless steel
  • VSWR: 1.2.1 or better
  • Mounting: from 2" to 4"
  • Polarization: vertical and horizontal
  • Weight: 18 Lbs (8.2 kg)
  • Gain: - 3 dBd (referred to half-wave dipole)
  • Dimensions: 58"×32"×32" (1450×800×800mm)
  • H plane: omnidirectional ±1.5 dB (with a 4" mast)
  • V plane: omnidirectional ±3 dB (with a 4" mast)
  • Packing: 68"×10"×10"
