083402<transcy>Prix habituel</transcy> $10,075.00
Unique to DMX is its built-in networking (5-port switch) that lets you create a smaller local network, adding I/O and another console without needing an external switch. This gives you the speed and flexibility to have a complete, self-contained setup and the ability to add-on without the need for an external switch. It’s an ideal setup for a two- or three-studio facility where each studio can act independently as a separate standalone entity, but the studios are linked together through an IP network. To accommodate this, DMX provides 1Gb connectivity via its built-in five-port switch for robust routing of sources and destinations between studios and integrates easily into most existing radio automaton systems.
Need more? Simply take advantage of all the WheatNet-IP Intelligent Network has to offer.

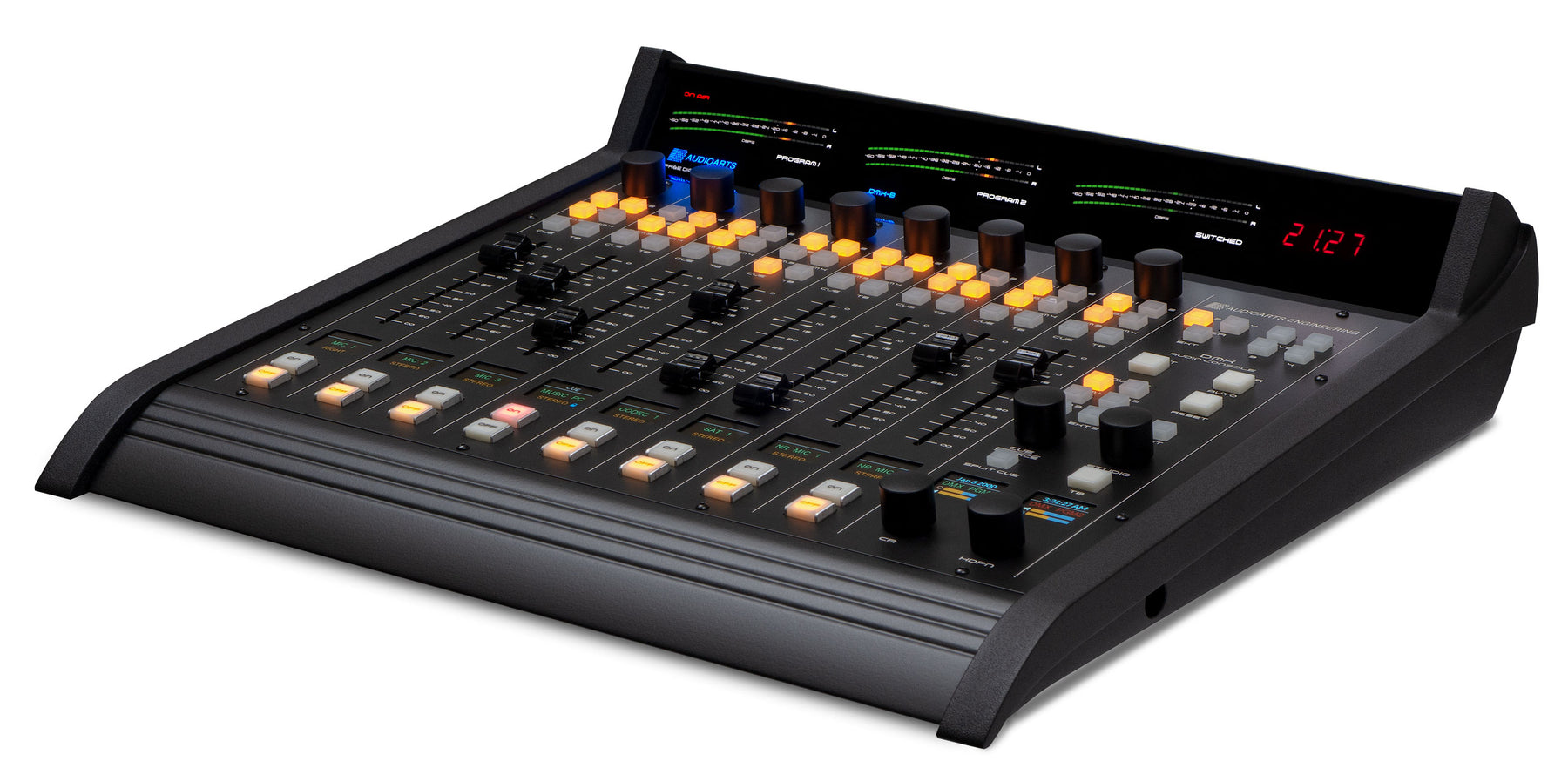

The DMX control surface is a fully integrated standalone console for on-air and production applications. It is available in an 8-fader (DMX-8) or 16-fader (DMX-16) frame with four program busses and bus-minus on every fader as well as convenient multi-function knob on each channel for adjusting pan, mode, dynamics, and input sources. The console has talkback and cue functions, EQ/dynamics, and control room, studio and headphone monitors, plus LED metering, built-in timer, and four-event recall.
Standalone production or on-air console with local inputs and outputs
5-port Ethernet switch built into Audioarts Mix Engine - no need for an external switch
Control surface size for 8 fader channels
WheatNet-IP protocol with 1Gb connectivity - any source to any fader
Bus Minus (N-1) on each input channel
Four program output busses
Four event buttons for recalling entire console setups at the touch of a button
Pre-programmed processing presets for mic/voice
Control room, studio, and headphone jack (with built-in amplifier w/level control)
Full EQ functions (4-band parametric with high/low pass and high/low shelving) and full dynamics (compression, limiting, and expansion) on every channel
Multi-function channel-encoder knob with OLED display on each channel for control of EQ, dynamics, sources, pan, mode, and more
Talkback and cue functions
Six logic GP I/O ports for network control
100% WheatNet-IP compatible with all BLADEs, Consoles, Processors, and Software
Audioarts Mix Engine is configured: 2 mic inputs on XLRs, with all additional I/O on RJ-45 connectors: 4 analog inputs, 4 digital inputs, 4 analog outputs, 4 digital outputs, 2 analog mic outputs, Headphone output, Cue output, Studio output, and Control Room output. There are also 5 ethernet ports that will interface directly with optional I/O Razor Interfaces, and a 1 Gb ethernet port for networking.
Optional Razor I/O Interfaces can expand the system I/O with 8 stereo or 16 mono in and/or out; available in analog, digital or analog/digital version
