Nicom BLK5 Receive and Transmit Antenna

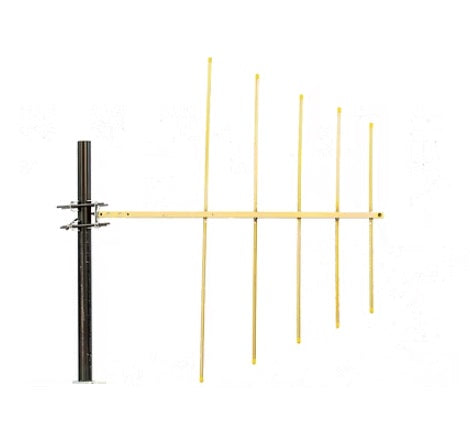

Nicom BLK5 88-108 MHz FM Directional Antenna 5 Elements

This antenna is used for transmitting FM signals over the entire band. It is ideal to achieve directional patterns.  It has a 100° radiation angle and good gain on a wide angle of coverage. Its aluminum construction renders it light and easy to install and very compact for shipping.

Technical Specifications:

• Antenna type: 5 element directional antenna
• Frequency range: 88-108 MHz
• Bandwidth: 20 MHz
• Impedance: 50 ohms
• Connectors: N or 7/16 din
• Power rating: 1000 / 2000 watts max.
• VSWR: 1:4:1 max
• Polarization: vertical, horizontal or 45 degree Slant
• Gain: 6.2 dBd (referred to half-wave dipole)
• H plane: 106 degrees
• V plane: 66 degrees
• Front-to-back ratio: 13dB min.
• Lightning protection: all parts grounded
• Max wind velocity: 120 mph (195 km/h)
• Wind load: 68 Lbs

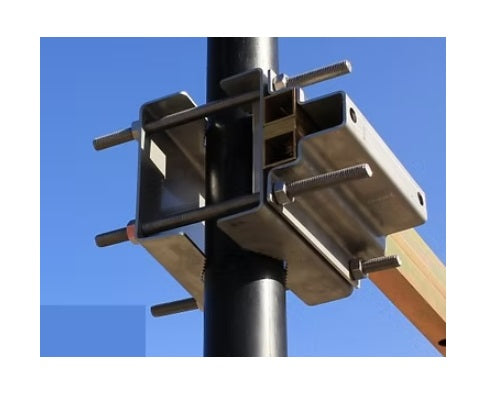

• Materials (external): Aluminum alodyne, Stainless steel bracket
• Mounting: 2-4 inches max
• Weight: 9 Lbs
• Dimensions: 59"×67
